Wyze Thermostat

Temperature Preferences
Keep the temperature where you want it. Temperature Preferences lets you customize 3 settings for when you’re home, away, or asleep.

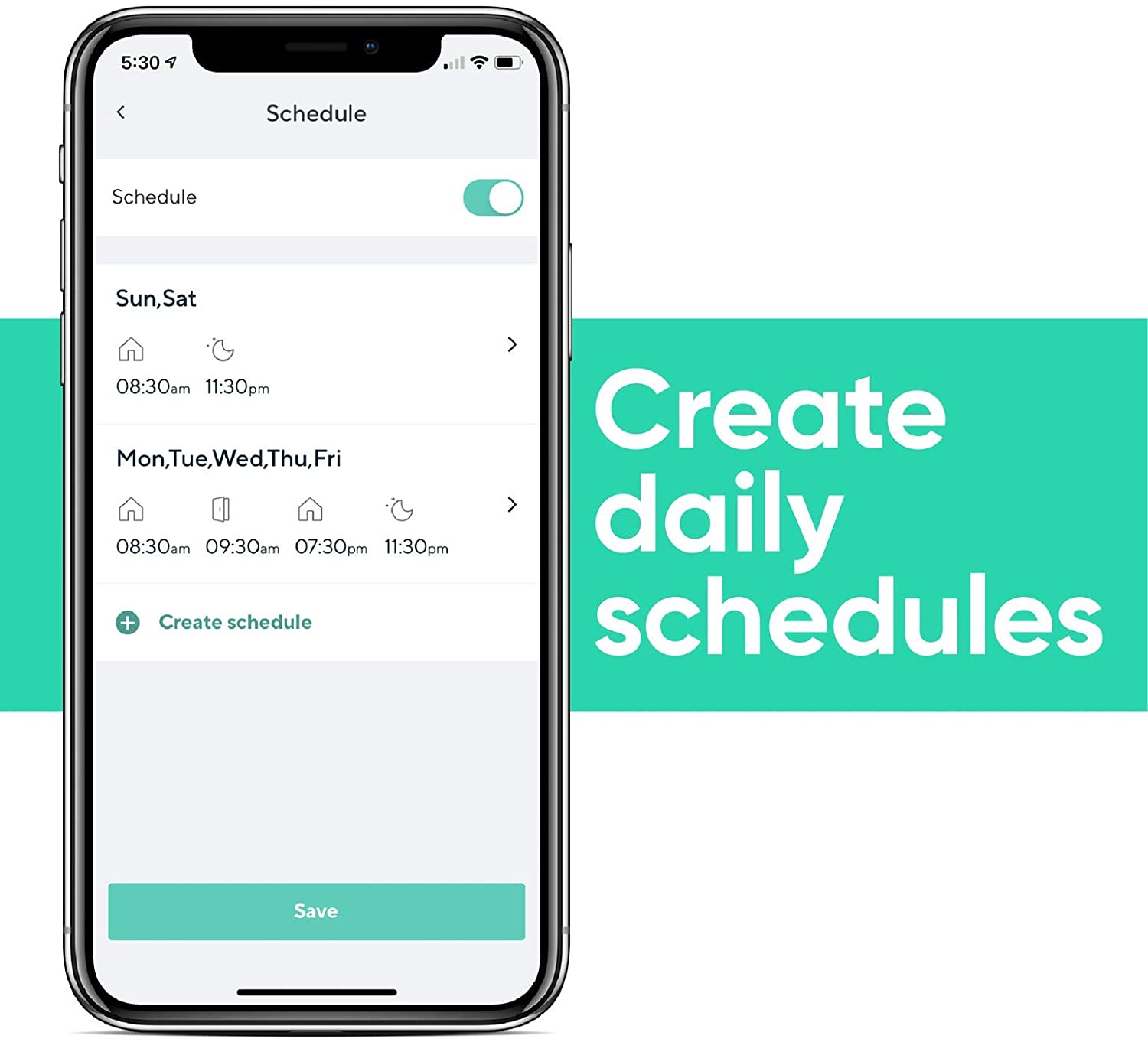

Scheduling
Truly control your thermostat. After setting your Home, Away, and Sleep preferences, use Scheduling to program your thermostat for one week, each individual day of the week, any group of days, or a few hours at a time.

Auto Switch
Wyze Thermostat sets the temperature based on where you are, automatically. Auto Switch uses your phone’s Bluetooth to switch between your Home and Away preferences whenever you leave or enter a 3-mile geo-fenced radius around your home.

Coast to Cool
Keep it cool, while saving energy. Wyze Thermostat signals your compressor to turn off before the end of a cooling cycle and keeps the fan on to blow the remaining cool air into your home.

Safety Temps
Not too hot, not too cold. Safety Temps helps protect your home from extreme cold or hot weather by turning on your heating or cooling system when your set limits are reached.

Fan Circulation
Let Wyze Thermostat control your fan independently. This lets air continue to circulate throughout your home without any additional heating or cooling using up energy.

Minimum Run Time
Extend the life of your HVAC system. Use the Minimum Run Time feature to set the minimum amount of time the system should run for after you’ve turned it on, even if it’s been manually turned off.

Swap Heat and Cool
Refine how Wyze Thermostat functions after setup. If your heating system is turning on your AC, or your AC is turning on your heating when testing the thermostat, this feature swaps the output of the wiring without having to change which terminals the wires are plugged into.

Works with Alexa (Google Assistant coming soon!)
Tell Alexa to turn up the heat for you, no need to get up. Wyze Thermostat works with your Alexa-enabled devices to control your thermostat with your voice.

Sharing
Ready to let someone else control your Wyze Thermostat? Now that’s trust! Give your friends and family access to your thermostat from the Wyze app.

Units
By default, Wyze Thermostat is set to Fahrenheit, but you can change it to Celsius in your Settings.

Here are the requirements for compatibility with Wyze Thermostat.

Electrical Requirements: 24VAC
Wires: No need for common (C-wire)
Conventional (Furnace and Air Conditioning): - Up to 3 stages heat
- Up to 2 stages cool

Heat Pumps:
- Up to 4 stages heat
- Up to 2 stages cool

Accessory (Humidifier, Dehumidifier, Emergency heat, Ventilator):
- One accessory support available

Transformer (Boiler and Air Conditioning):
- Can support all combinations of dual and single transformers

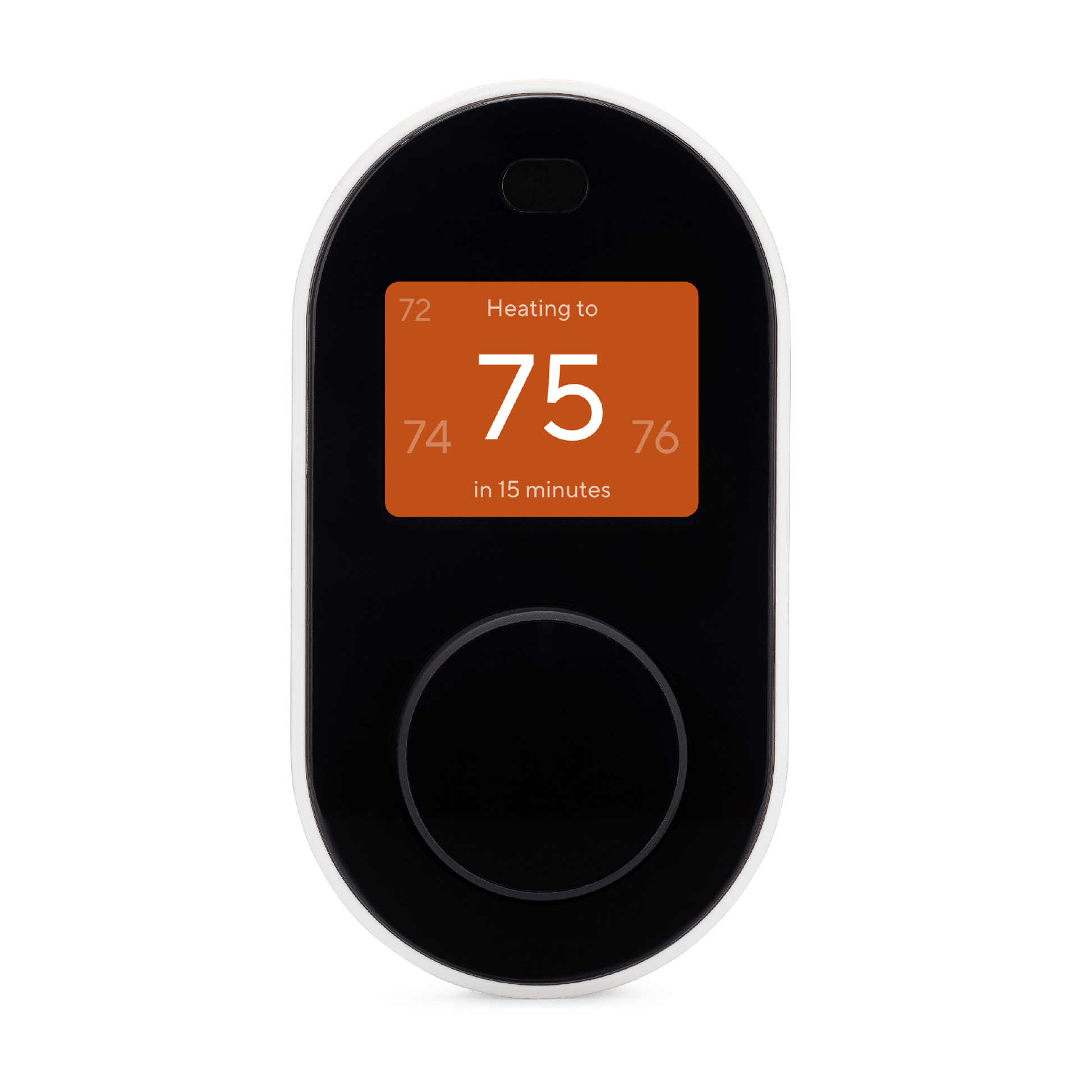

Wyze Thermostat Device Details
Color
Black and white

Materials
Body and back panel: PC+ABS

Face plate: PMMA

Dimensions
Thermostat: 120mm (L) x 65mm (W) x 33mm (D)

Wall Cover: 165mm (L) x 140mm (W)

Weight
<1lb

3-in-1 Sensor Device Details
Sensors
Temperature & humidity

PIR motion

Materials
Body and back panel: PC+ABS

Face plate: PMMA

Dimensions
80mm (L) x 60mm (W) x 16mm (D)

Compatibility
System Compatibility
See the Quick Start Guide.

Phone Compatibility
Android 5.0+

iOS 9.0+

Display
IPS Display

180º Viewing angle

Power
Power source
24VAC through C terminal

C-wire adapter included

Power consumption
<3.5VA

Sensors
Temperature & humidity

PIR motion

Communication
Bluetooth

2.4GHz WiFi

Recommended Temperature
Operating
32°F - 130°F (0°C - 55°C)

5% - 95% RH (non condensing)

Storage
-31°F - 113°F (-35°C - 45°C)

5% - 95% RH (non condensing)

Weather Resistance
None. Indoor use only.

Environmental Information
Certifications
FCC, IC, and California Proposition 65

Eco-Friendly
Recyclable packaging

Mercury free

Arsenic free

PVC free

Languages
English

Warranty
1-year

Wyze Thermostat x1
C-Wire Adapter x1
Back Panel x1
Mounting Plate x1
Wall Cover x1
Wall Screws x2
Wall anchors x2
Mounting Screws with anchors x2
Wire Label Sheet x2
Screwdriver x2
Quick Start Guide x1

Will Wyze Thermostat still work if my WiFi connection drops?
Yes, Wyze Thermostat will continue operating based on the last updated schedule. You can also control your temperature or change the status from the thermostat itself.

Is Wyze Thermostat ENERGY STAR approved?
No, not at this time. We're working towards qualifying for ENERGY STAR approval for Wyze Thermostat.

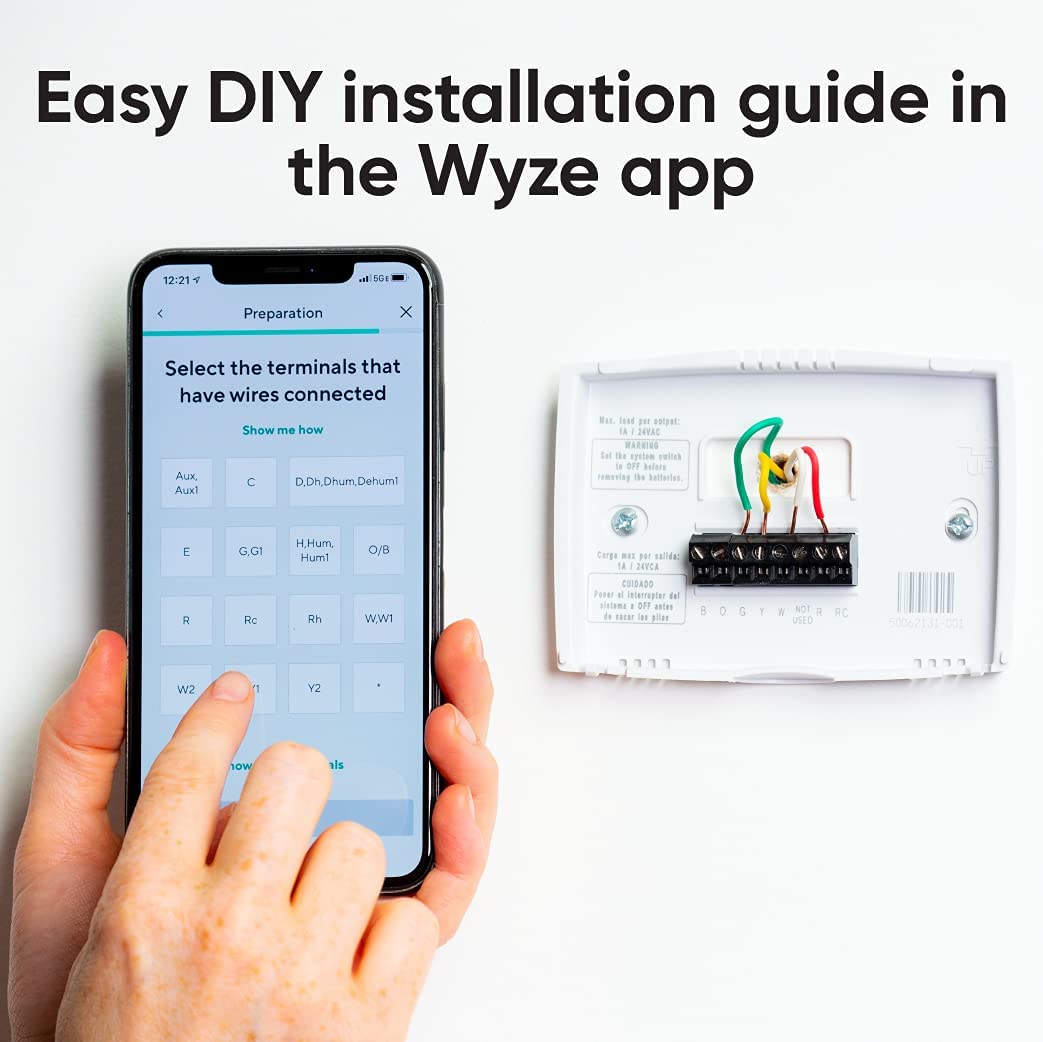

How long does it take to install Wyze Thermostat?
About 30 minutes! And all the tools you need are included in the box, though a power drill might be helpful.

Does Wyze Thermostat have Alexa built-in?
Wyze Thermostat works with Alexa, but it does not have an internal speaker and Alexa is not built-in. You'll need to own an Echo speaker (or another device with Alexa) to control your thermostat with your voice.

Will Wyze Thermostat work with electric baseboard heating?
No, the thermostat does not work with electric baseboard heating, which is a high voltage (120V or 240V) heating system. Wyze Thermostat was made to control low voltage (24V) heating systems only.

Do I need to have a C-wire, or “common” wire?
Yes, the C-wire powers Wyze Thermostat. Don’t have a C-wire? We’ve included a C-wire adapter in the box.

Is my current wiring compatible with Wyze Thermostat?
Check your voltage! Wyze Thermostat is compatible with low voltage (24V) systems such as forced air, hydronic, heat pump (including dual fuel), oil, gas and electric. It is compatible with most single-stage and multi-stage conventional and heat pump heating and cooling systems.

Will Wyze Thermostat work if the power goes out?
No, the thermostat will not work if the electricity goes out. It will automatically reconnect and resume its schedule once power returns.

Does Wyze Thermostat work with Wyze Sense sensors?
Yes, using the Rules feature in the Wyze app.

I have 2 thermostats in my home. Can I use Wyze Thermostat?
If your 2 thermostats are controlling 2 different HVAC systems, then yes. You can use 2 Wyze Thermostats to control each system.
