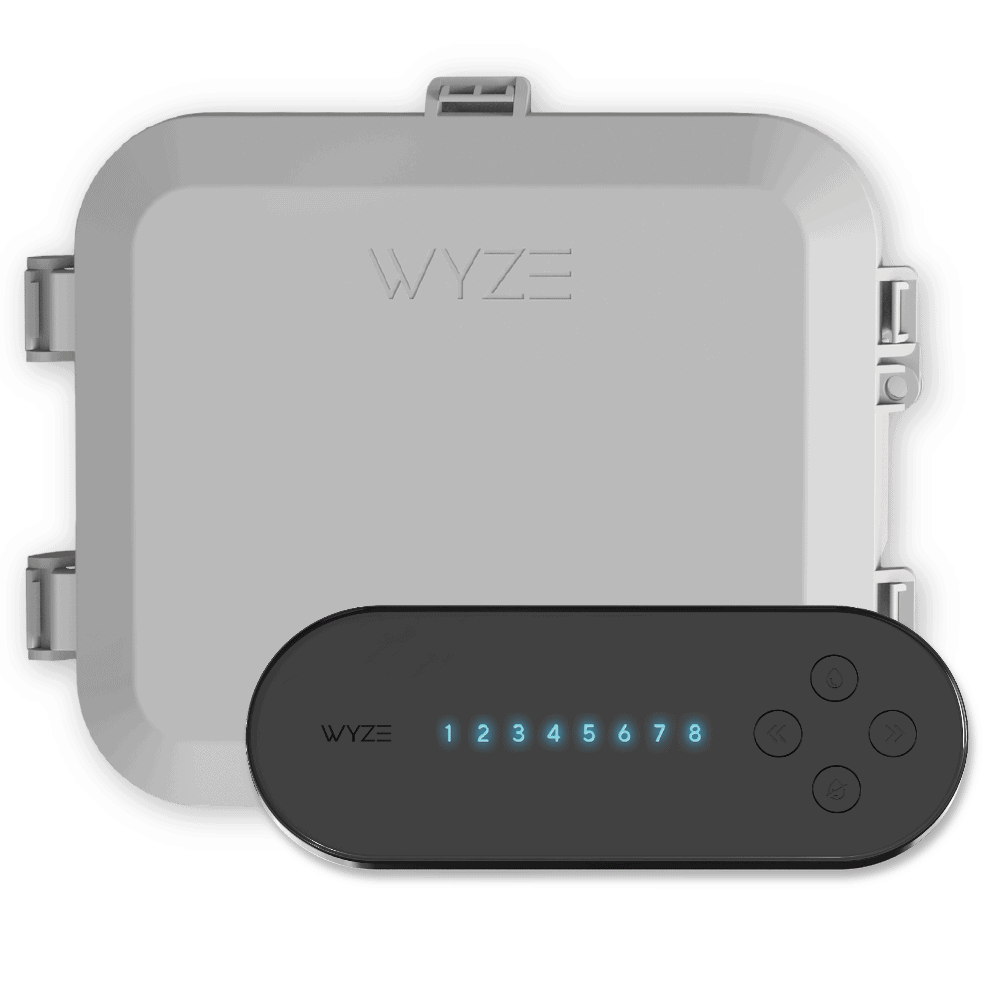

Wyze Sprinkler Controller

Water from anywhere
Manually start and stop watering from anywhere with the Wyze app.

Fixed Schedules
Easily create schedules to water plants on specific days and times. Great for situations where you need precise amounts of water or just want more predictable control of your irrigation system.

Smart Schedules*
With Sprinkler Plus, you can create Smart Schedules which automatically calculate when to water each zone based on its specific needs and weather conditions. It’s the easiest way to ensure your lawn is taken care of.

Customizable Zone Parameters
Basic zone information (crop & spray head type) is gathered during set up, but you can go into the weeds by tweaking the parameters of each zone to drive the best Smart Schedule results.

Offline Schedules
If you lose connection to the Internet, Wyze Sprinkler will continue to operate on the saved schedule for the next 14 days. After that, the device falls back to your offline schedule.

Sunrise/Sunset
Enter your location to have your irrigation system water your lawn based on local sunrise or sunset times.

Weather Skips*
Avoid wasting water or hurting your plants with Sprinkler Plus by skipping a watering if it's too cold, too windy, when sufficient rainfall is expected, or if the zone is wet enough.

Cycle/Soak*
If you water a zone for too long, some of the water may run off and be wasted. Cycle/Soak breaks your watering down to multiple cycles to give the soil time to soak the water in for efficiency.

Advanced Zone Details*
With Sprinkler Plus, you can see the exact moisture level of each zone so you can be sure your plants are happy.

Easy Installation
Replaces your existing controller in under 20 minutes.

*Requires Sprinkler Plus - 1 Year Included.

Color
Black/white

Dimensions
9.1in x 3.3in x 1.5in (231 mm x 84 mm x 38 mm)

Weight
7.6 oz

Zones
Up to 8

Operating Temperature
-4ºF - 122ºF (-20°C - 50°C)

Weather Resistance
Indoor-use only

Power Source
24V AC, 60Hz, 850mA

Power Cable Length
6 feet

Valve Output
24V AC, 60Hz

Compatible Wire Sizes
12 - 28 AWG

Certifications
FCC part 15B

RoHS

CEC

Wyze Sprinkler Controller x1
Power Adapter x1
Mounting Plate x1
Screw x2
Wall Anchor x2
Cord Wrap x2
Quick Start Guide x1
Wire Label Sheet x1
1-Year Sprinkler Plus Coupon x1

What is WaterSense and why is it helpful?
Products with the WaterSense label are 20% more water efficient than average products in the irrigation control category. You might also receive a rebate on the cost of Wyze Sprinkler Controller in certain districts. https://lookforwatersense.epa.gov/rebates/

Is my irrigation system compatible with Wyze Sprinkler?
Wyze Sprinkler is compatible with most residential irrigation systems in North America. It supports up to 8 zones and can be used with systems that have a master valve or pump relay. It is not weatherproof, so it should only be mounted indoors. It is also not compatible with systems that use index valves.

What is Sprinkler Plus and do I have to have it?
Sprinkler Plus is an optional service that adds a ton of smarts to your Wyze Sprinkler! With Sprinkler Plus, your Wyze Sprinkler gains advanced weather data that can be used to create Smart Schedules, enable Weather Skips, and provide detailed Zone Moisture information. One year of Sprinkler Plus comes with your purchase and can be renewed annually for $9.99. We plan to continue to add new features and benefits to Sprinkler Plus so stay tuned!

How does Sprinkler Plus decide when to water?
With Sprinkler Plus, you can create Smart Schedules to automatically water your plants when needed. To do this, we use the previous and forecasted weather to calculate the water balance in each zone. When the balance gets to the allowed depletion, we schedule a watering.

What happens if the device goes offline?
If you lose connection to the Internet, Wyze Sprinkler will continue to operate on the saved schedule for the next 14 days. After that, the device falls back to your offline schedule.

Will Wyze Sprinkler work if the power goes out?
No, Wyze Sprinkler requires power to operate your irrigation system.

Does Wyze Sprinkler work with more than 8 zones?
Wyze Sprinkler is only compatible with up to 8 zones. Do not attempt to put multiple wires into one terminal or daisy chain devices. However, two controllers can work independently, but you must label the zone-to-controller mapping on your own.

Is Wyze Sprinkler WaterSense certified?
No, not at this time. We will consider applying for certification in the future.

How long does it take to install Wyze Sprinkler?
Most users can set up Wyze Sprinkler in just 20 minutes.

What integrations does Wyze Sprinkler have?
None at this time, but we will consider adding additional services in the future.

Can I limit watering to certain days of the week?
Yes! You are able to limit watering to specific days of the week or even/odd days.

Is Wyze Sprinkler compatible with rain and soil sensors?
Wyze Sprinkler works with most normally closed rain & soil sensors.
